Products & Services

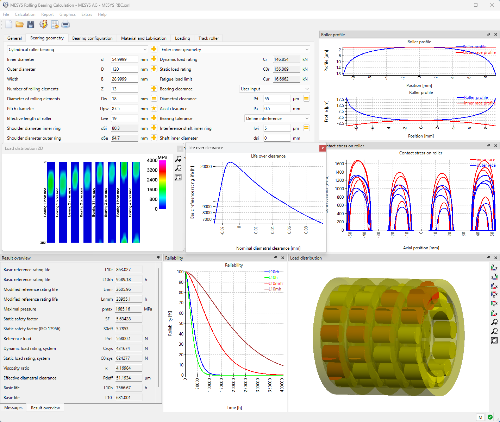

MESYS Rolling Bearing Calculation Product & Cloud Service show product detailhide product detail
- Price
- €3000 without tax
- Description
-
Rolling bearing analysis according ISO 16281
The software calculates the load distribution an life of rolling bearings considering operating clearance, centrifugal forces and tilting moment.
For track rollers a calculation with elastic outer ring is possible.
Results are available as PDF-report and in various diagrams.
Languages: EN/DE/FR/IT

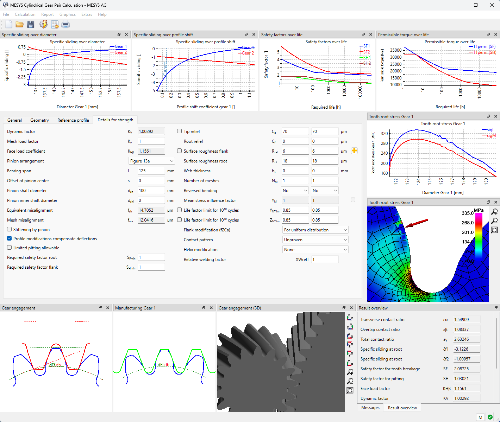

MESYS Cylindrical Gear Pairs Product & Cloud Service show product detailhide product detail
- Description
-
The gear pair calculation can be use as standalone program or integrated into the MESYS shaft system calculation.
- Geometry calculation according to ISO 21771-1.
- Strength calculation according to ISO 6336-1, 2, 3, 5, 6, 20, 21
- Calculation with load spectra
- Parameter variations
MESYS Shaft System Calculation Product & Cloud Service show product detailhide product detail
- Description
-
The MESYS shaft system calculation allows the calculation of stresses and deformations of shaft systems using load spectra.
Rolling bearings are considered as nonlinear stiffness and all inputs of the MESYS rolling bearing analysis are available.
Shafts can be connected by gears or belts to consider a whole system. A gear calculation according to ISO 6336 is integrated and there are interfaces to third-party gear calculation programs.
Housings, complex shafts or planet carriers can be considered as 3D-elastic parts (condensed 3D-FE models by STEP imports) for an accurate consideration of compliance.
Natural frequencies can be calculated with or without gyroscopic effect.
Strength calculation is done according DIN 743 (2012).
Languages: EN/DE/FR/IT
